Overview Design
- Single Stage Horizontal Process Centrifugal Pump. To API 610 – 12th Edition

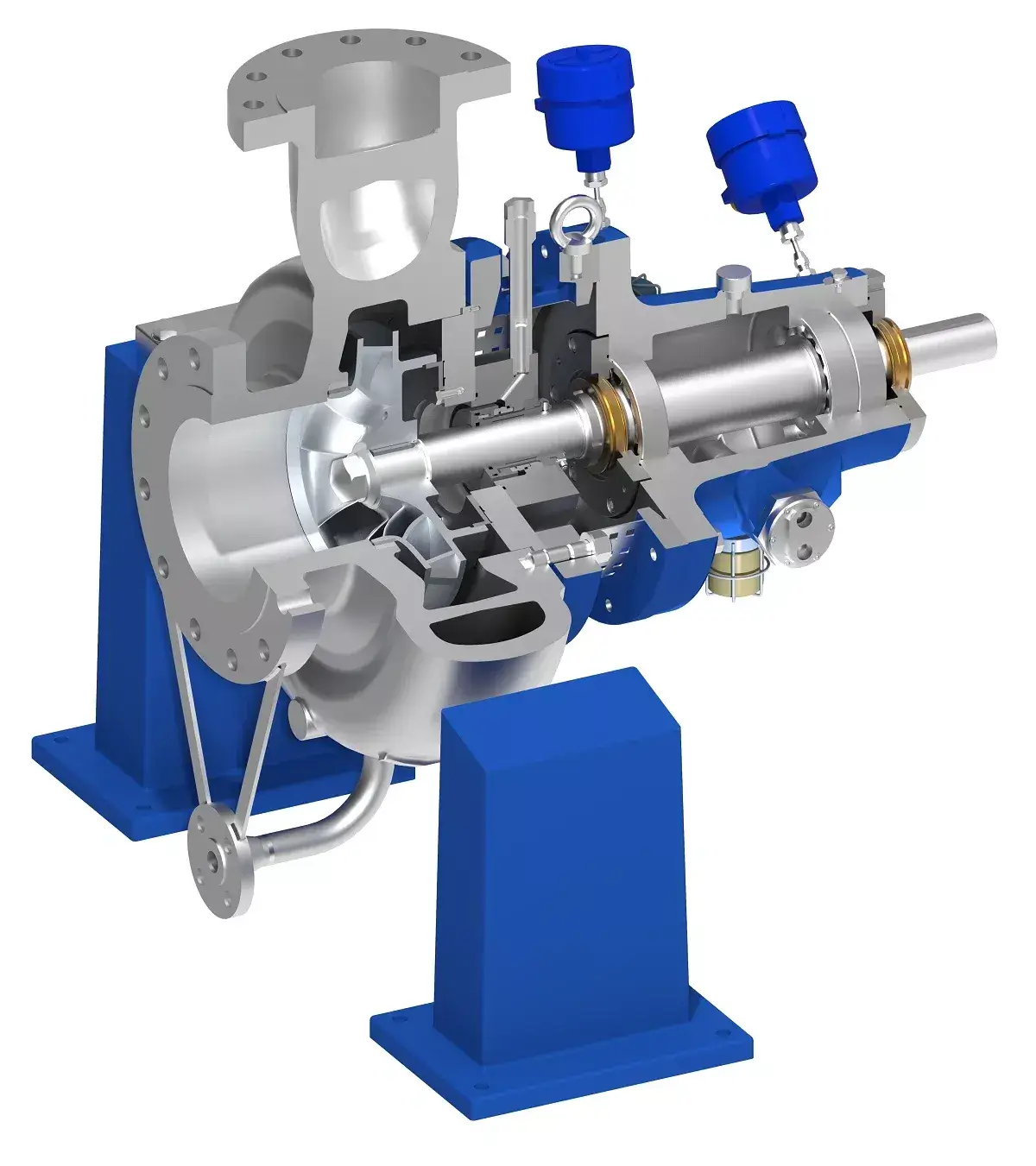

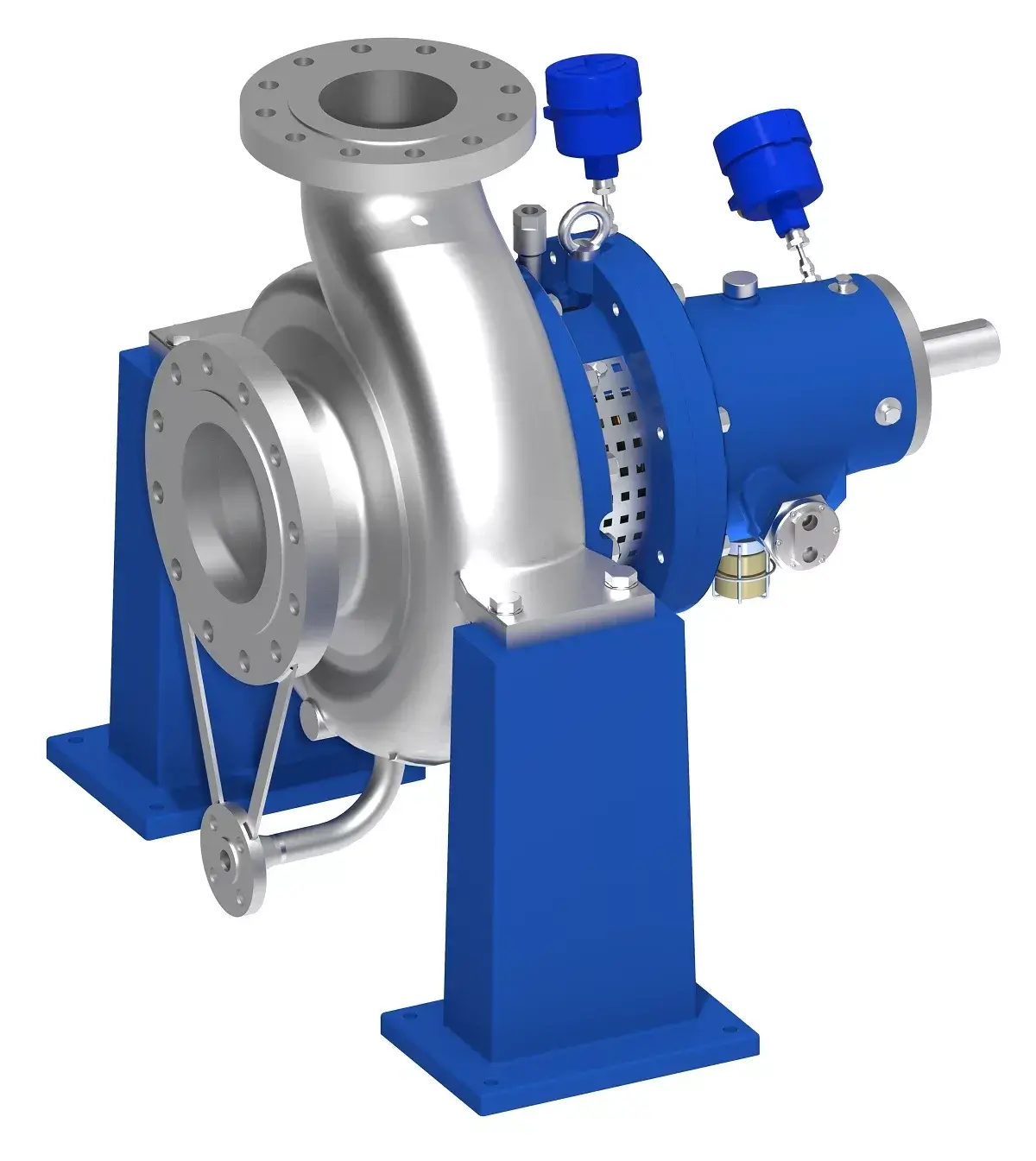

- Pump casing designed to OH2 – centerline mounted (With optional to OH1 – foot mounted)
- Pump construction, performance and hydraulic built accordance to API 610
- Shaft sealing: for Single or Double Mechanical Seal (API 685) with Flushing Plan
- Pump material available in steel (S-8), stainless steel (A-8), duplex (D-1), special material is also available upon request.
- Bearing bracket available is oil lubricated or greased for life antifriction bearing design. For other bearing design, please consult us
Pump Material
| Components | S-8 | A-8 | D-1 | ||||
| Pump Casing | Carbon steel | 316 Austenite | Duplex | ||||
| Impeller | 316 Austenite | 316 Austenite | Duplex | ||||
| Wetted Parts | 316 Austenite | 316 Austenite | Duplex | ||||
| Shaft | 316 Austenite | 316 Austenite | Duplex | ||||
| Intermediate | Carbon steel | Carbon steel | Carbon steel | ||||
| Latern/Bearing | |||||||
| Support |
Typical Applications
- Acids
- Lyes
- Hydrocarbons
- Hear transfer liquid
- Coolants
- Liquid gases
- Sewage
- Salt solutions
- Pulp
Details
| Flow Rate | Up to max. 3500m³/h. |
|---|---|
| Delivery Head | Up to max. 220m L.C. |
| Temperature Range | -120°C to +450°C |
| Pressure Rating | PN 40 |
